9x15mm SMD2835 LED Neon Strip
1138 Reviews
Voltage : DC24V/DC12V/AC110V/220V
Color: white /Red/Green/Blue/Yellow/Pink/Orange
LED Qty: 96pcs/Meter
Power: 8.65W/M
Waterproof grade: IP68
Packing : 50M/Roll
Features
Parameter
Download

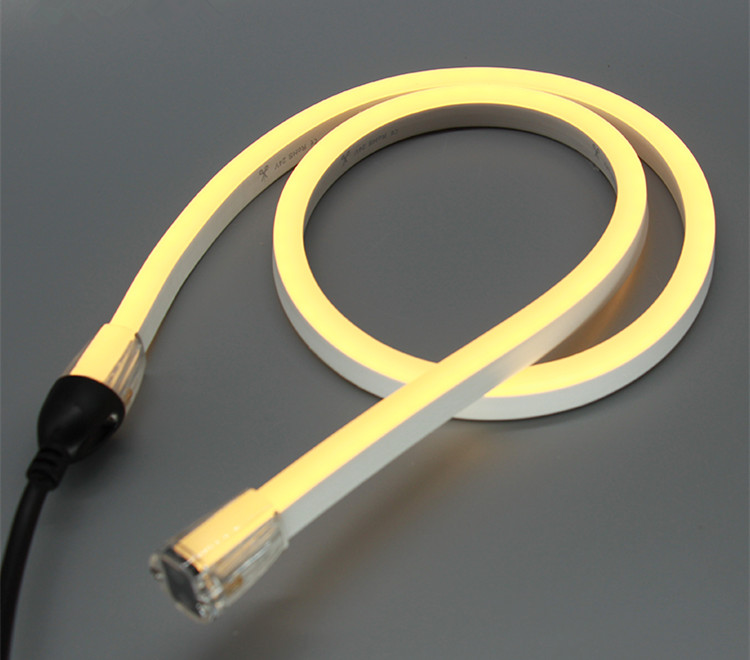

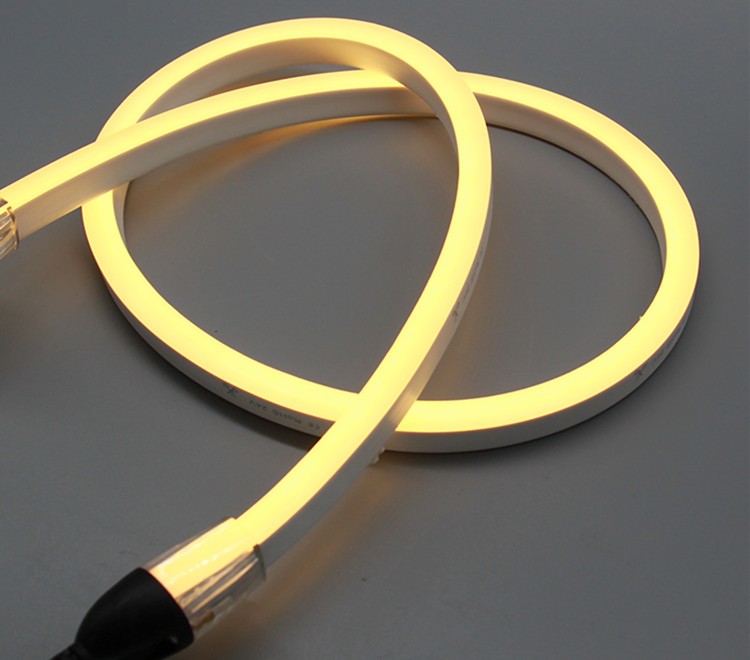

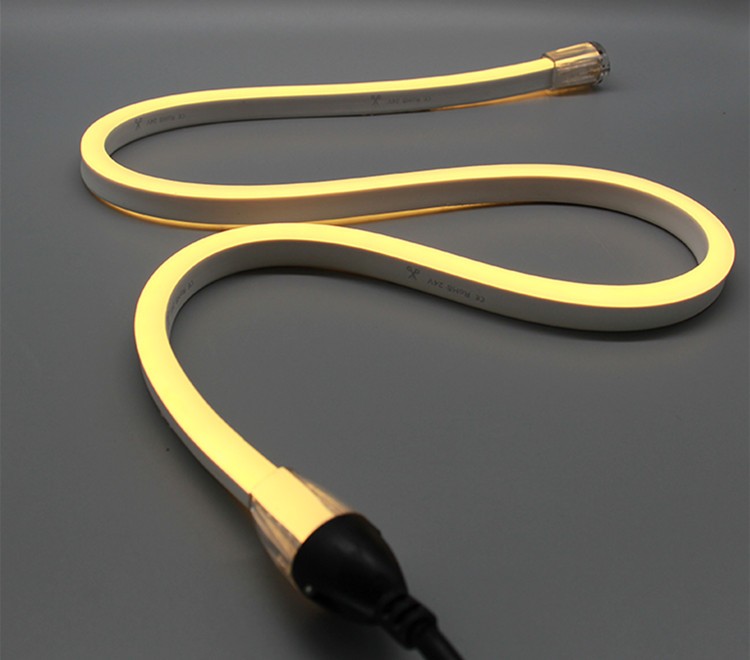

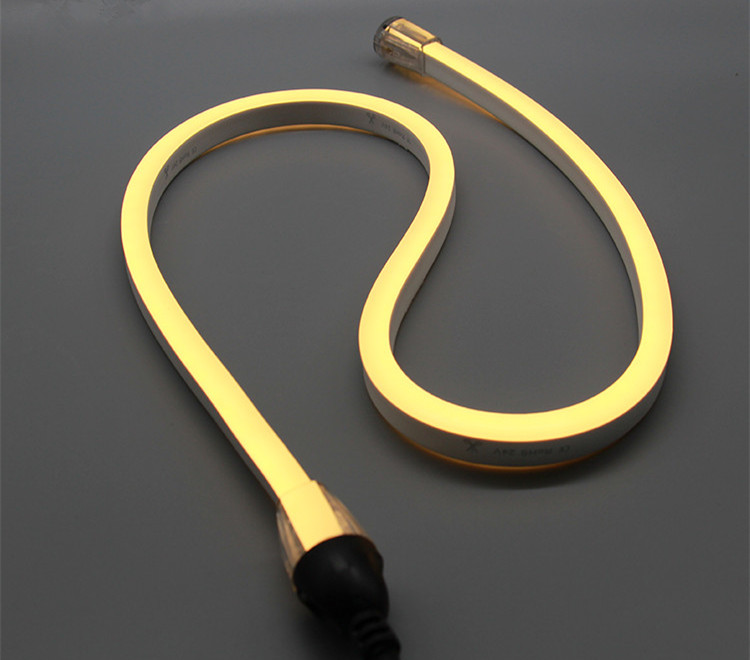

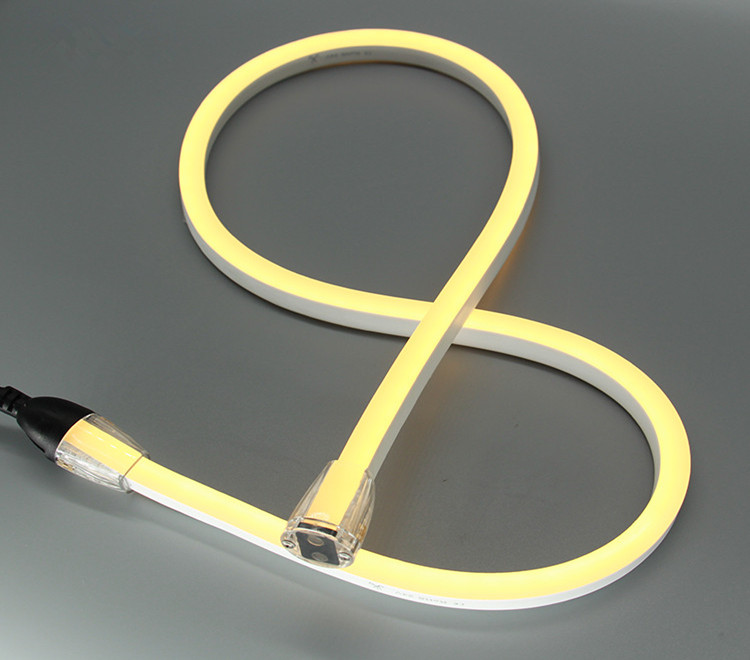

9x15mm SMD2835 DC24V LED Neon Flex strip
9x15mm SMD2835 DC24V LED Neon Flex strip
| Model number: | MX-NF-SMD2835-9*15mm-12V/24V/120V/220V | |||||||||
| LED chip : | 0.2W / LED in SMD2835 LEDs in Epistar chips ( 22-24Lm / LED in White LED ) | |||||||||
| Housing Material: | Fabricated with Eco-friendly, UV-resistant PVC materials | |||||||||

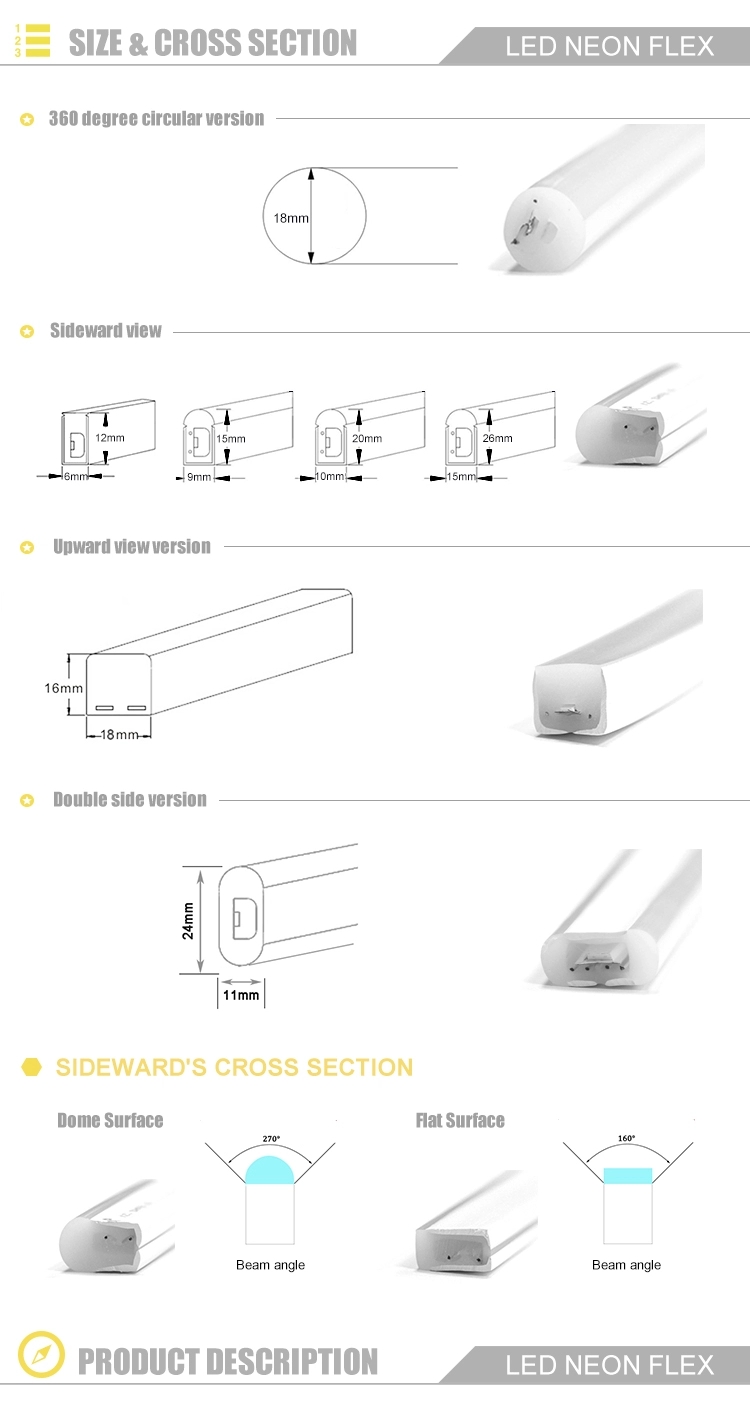

| Size: | Ultra Thin Mini size 9*15mm ( Dome surface and Flat surface ) | |||||||||
| Voltage options: | DC12V | DC24V | AC100-120V | AC220V-240V | ||||||
| Unit cutting length: | 4.17cm | 12.5cm | 50cm | 100cm | ||||||
| Running length based on one side power feed: | 8-10M | 15-20 M | 50 M | 100 M | ||||||
| Lumen maintennance: | 70,000 Hours L70 @ 25℃ : 90,000 Hours L50 @ 25℃ | |||||||||
| 50,000 Hours L70 @ 50℃ : 70,000 Hours L50 @ 50℃ | ||||||||||
| Color: | Red | Green | Blue | Yellow | Pink(Voilet) | Orange | White | Warm white | Purple | |
| Wavelength: | 620-630nm | 520-530nm | 465-475nm | 585-595nm | 1600-1700K | 1800K | 6500K | 2700K | 465-470nm | |
| Power consumption / meter( Watts / m)-24V | 4.75W | 7.49W | 6.54W | 6.31W | 6.35W | 4.81W | 5.47W | 5.59W | 4.75W | |
| Power consumption / meter( Watts / m)-230V | 6.98W | 8.69W | 9.30W | 8.62W | 8.62W | 7.09W | 8.65W | 8.67W | 9.30W | |
| Lumen/M(Dome surface version)--24V | 72.12LM/M | 268.29LM/M | 36.84LM/M | 206.80LM/M | 52.65LM/M | 20.63LM/M | 226.30LM/M | 273.10LM/M | 40LM/M | |
| Lumen/M(Flat surface version)--24V | 52.09LM/M | 134.10LM/M | 22.06LM/M | 124.80LM/M | 31.27LM/M | 15.36LM/M | 182.30LM/M | 226.10LM/M | 36LM/M | |
| LED number / meter | 96 LEDs per meter for mono single color ( Dimming from 0-10V Magnetic Low voltage / DALI ) | |||||||||
| Min. Bending diameter: | 40 mm ( Vertially bending only ) |  | ||||||||
| Ambient temperature ranges: | -20℃ to 65℃ | |||||||||
| Operating temperature ranges: | -20℃ to 45℃ | |||||||||
| Long lifespan: | 5 years Warranty for colored LED ( Red, Blue, Yellow, Green, Yellow), 3 Years warranty for White and Warm white colors ( Based on 8 Hours of operation per day ) | |||||||||
