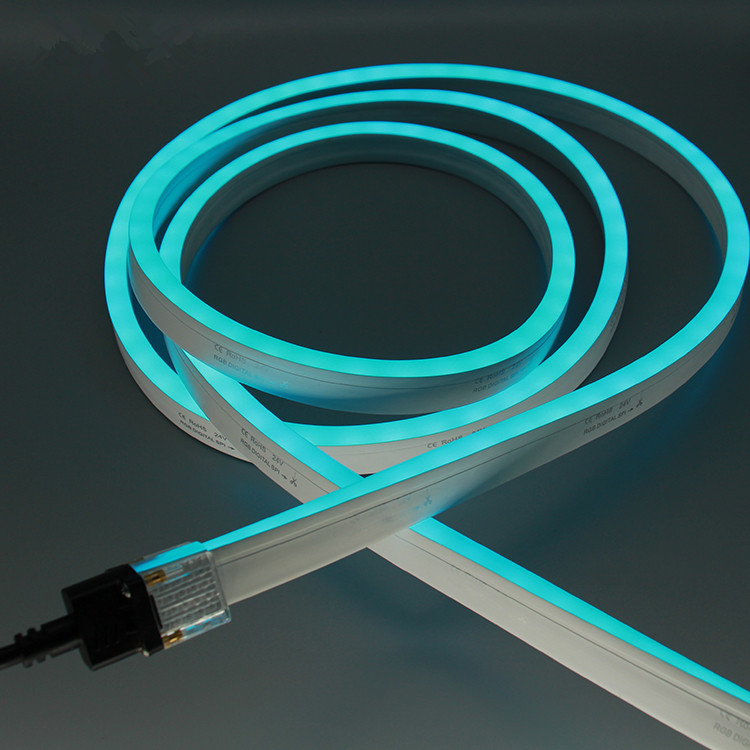

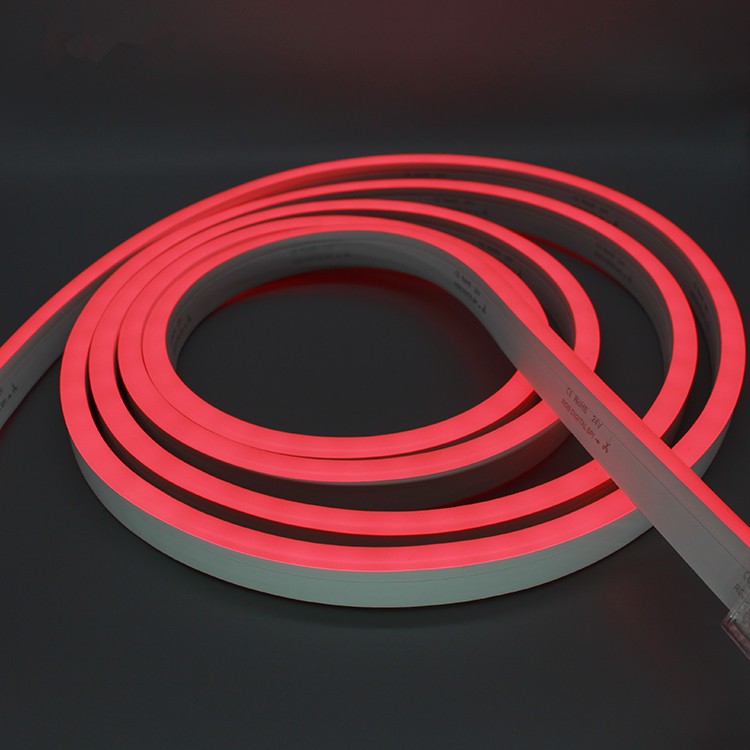

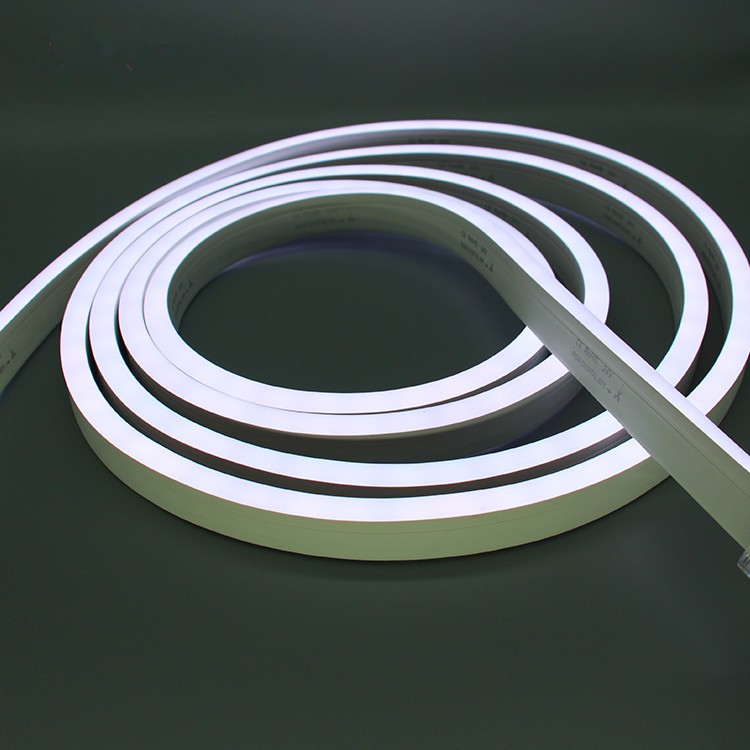

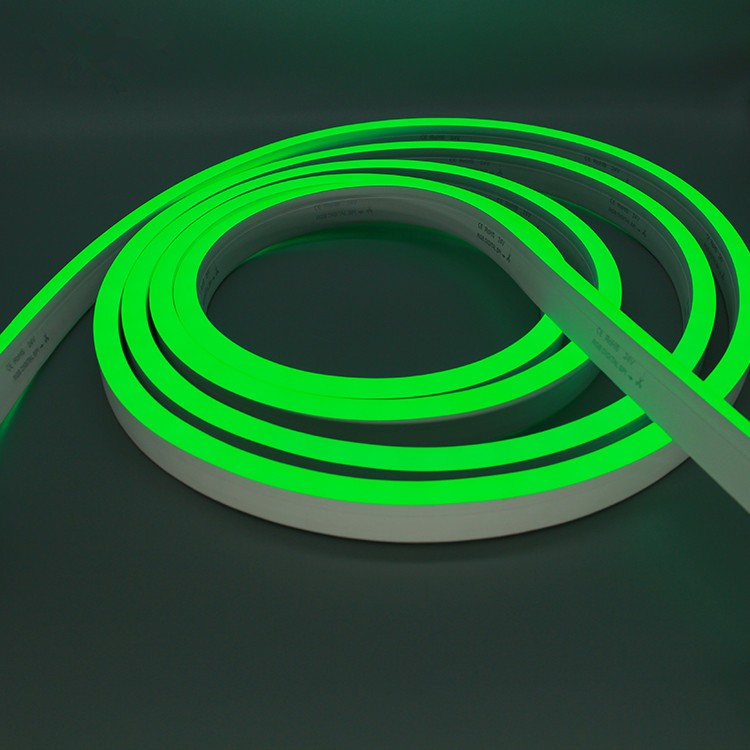

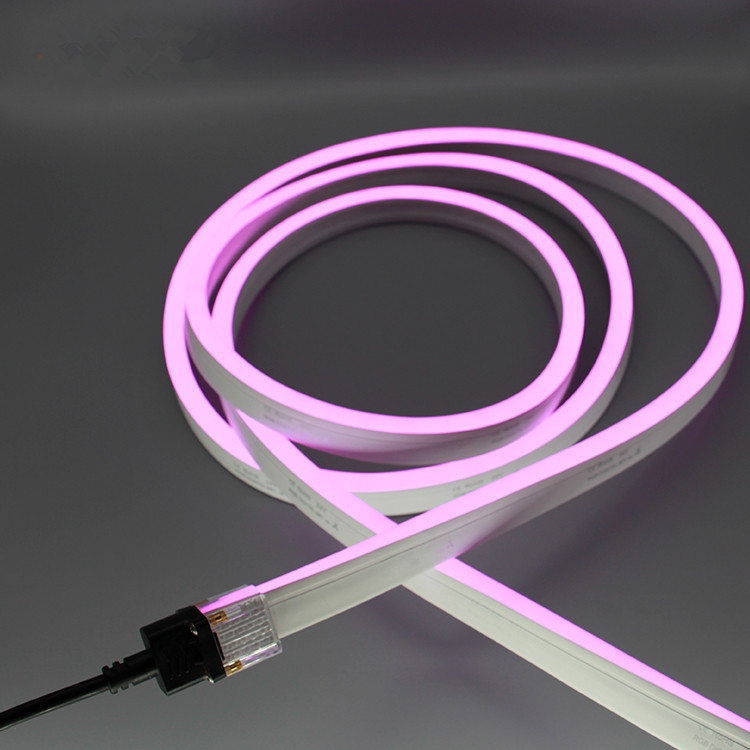

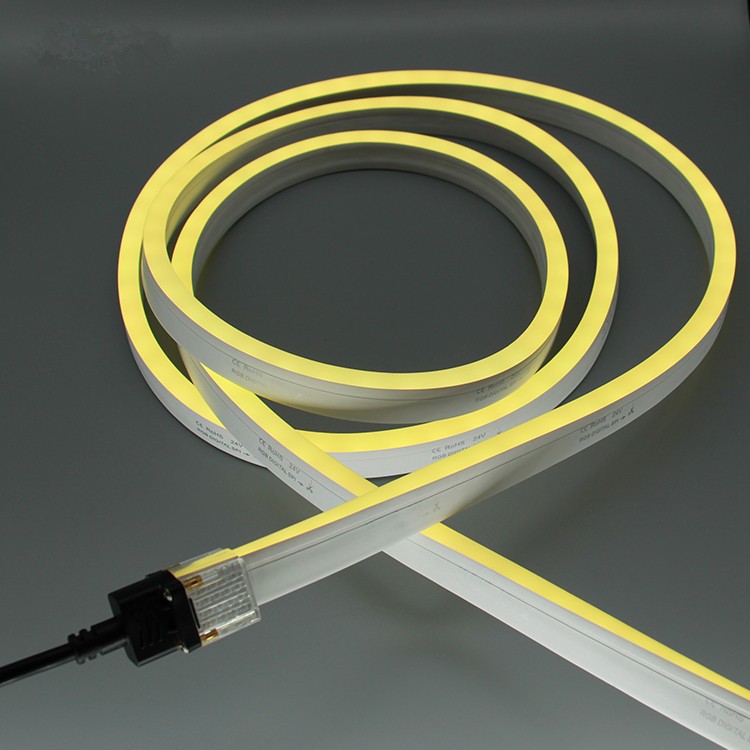

15x26mm RGB Color LED Neon strip
1267 Reviews
● Color: White /Red/Green/Blue/Yellow/Pink/Orange ；
● Voltage : DC24V/DC12V/AC110V/220V ；
● LED Qty: 72pcs/Meter ；
● Power: 12.3W/M (white) ；
● Waterproof grade: IP68 ；
● Packing : 50M/Roll .
Features
Parameter
Download
| Model number: | MX-NF-SMD5050-15*26mm-RGB-12V/24V/120V/230V | |||
| Color: | Red | Green | Blue | White (R+G+B) |
| Wavelength: | 620-630nm | 520-530nm | 465-475nm | 6500K |
| Power consumption / meter( Watts / m)-24V | 3.98W | 4.24W | 4.33W | 12.32W |
| Power consumption / meter( Watts / m)-230V | 4.11W | 4.34W | 4.34W | 13.52W |
| Lumen/M(Dome surface version)--24V | 52.83LM/M | 115.94LM/M | 17.20LM/M | 180.45LM/M |
| Lumen/M(Dome surface version)--230V | 56.27LM/M | 87.96LM/M | 12.80LM/M | 153.17LM/M |
| LED quantity / meter: | 72 LEDs per meter for Tri 3 in 1 RGB color | |||
| Control method: | PWM control / Compatible DMX 512 system | |||
| Min. Bending diameter: | 80 mm ( Horizontal bending only ) |  | ||
| Ambient temperature ranges: | -20℃ to 65℃ | |||
| Operating temperature ranges: | -20℃ to 45℃ | |||
| IP rating: | IP65 / IP68 (special front power connector) | |||
| Long lifespan: | 3 years Warranty RGB color ( Seven colors changing and color Fading) ( Based on 8 Hours of operation per day ) | |||
